    A10 Classic

    1790 €

    A high quality integrated with tube pre-amplification

    — OR —

    Add to Wishlist
    SKU: 3760179291988 Categories: Classic-Line, Integrated amplifier Tags: Tubes, VU-Meter
    • Description
    • Additional information
    • Documents

    Description

    THE MUSICAL EVIDENCE

    With our new A10 CLASSIC amplifier, our goal was to offer an audiophile integrated amplifier inspired by the famous X-i1100, acclaimed for its musicality and vivacity.
    The A10 is fully integrated into the future and easy to use. Although its classic design remains timeless, it combines an ECC81/12AT7 tube preamplifier with a 2x130W class AB push-pull amplifier.
    In short, the best of both worlds!

    The modernity is also displayed thanks to a microprocessor that manages all the functions called by the encoder, a long or short pressure allows to access the menus.
    We can scroll through the inputs: 6 analog on RCA with a MM phono with three capacity settings (100, 200, 320 pf), a balanced line on XLR, 5 digital including 3 optical, a S / PDIF and a USB audio, plus a connector for a bluetooth aptX receiver XFTB01 or XFTB02 (optional).
    A USB-A socket accepts MP3 audio files from a portable music player or USB stick. Originality: two HDMI sockets, one for a DVD to benefit from the audio signal quality of the A10 and one HDMI ARC to connect a CEC protocol display, can be activated in the system configuration menu.
    Here are also shown information about the system, the selection of speakers (A, B or A+B), the setting of loudness, bass, treble or bypass, the auto sleep (or not) spread from 5 to 90 min.
    The Trigger In/Out input controls the A10 on and off remotely, or from the A10 to another device connected via the minijacks.

    The A10 offers the possibility to connect two subwoofers and to output the modulation separately to the preamp or amplifier.
    A fixed Rec Out is intended for a cassette player, MD, or other type of recorder.
    At the rear, the High Bias switch activates the Class A bias on the first few watts of the power stage.

    The A10 is a real winner, and can even hold its own against more ambitious and expensive products.
    A great success in perspective!

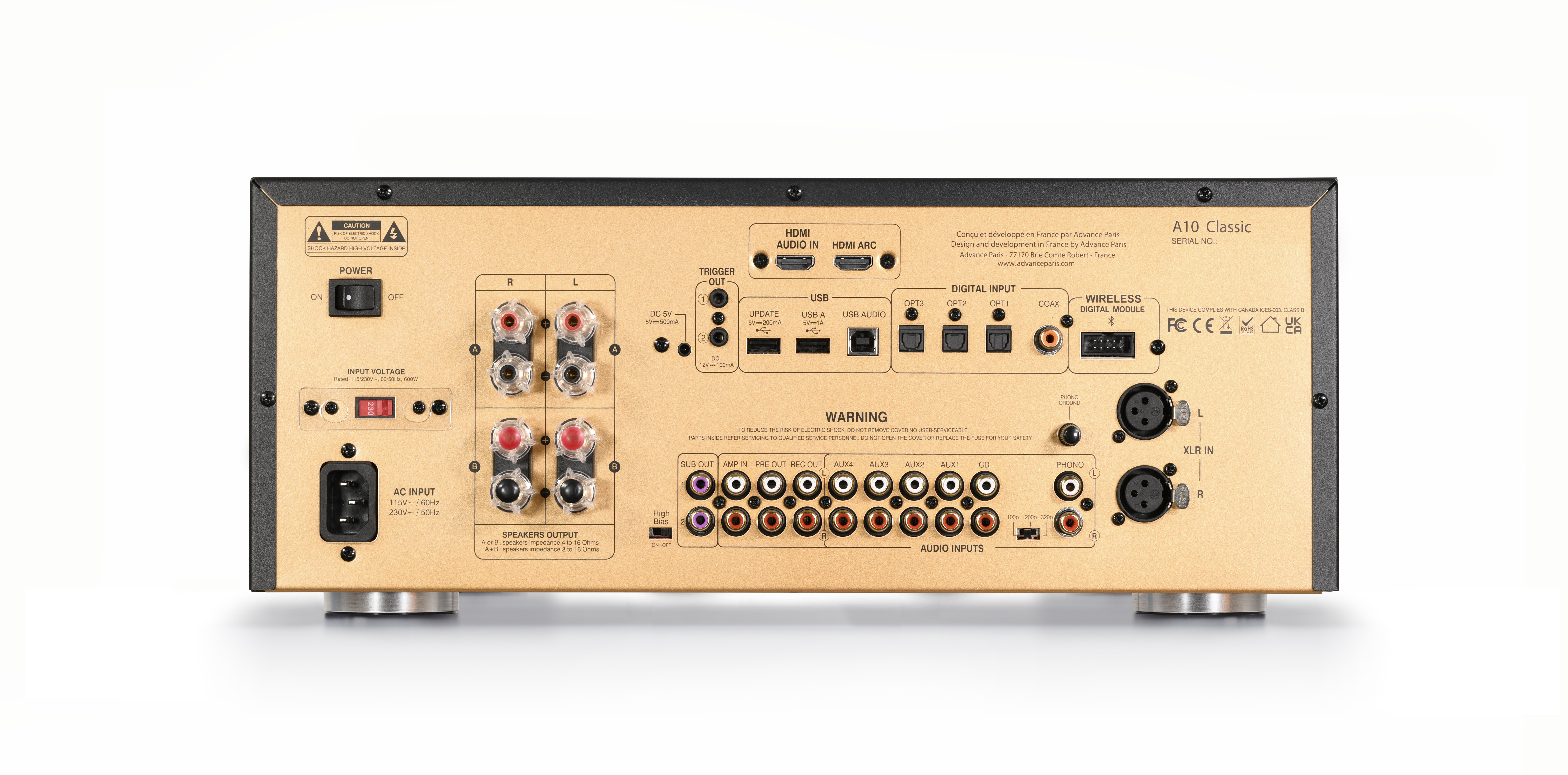

    Borniers pour la connexion de vos enceintes (Zone A et Zone B)
    Entrée XLR pour la connexion Symétrique
    Une prise HDMI pour connecter la sortie AUDIO d'une source HDMI et une prise HDMI ARC pour connecter votre téléviseur sur l'amplificateur.
    Entrées numériques y compris une entrée USB pour votre ordinateur
    Prise destinée à la connexion d'un récepteur Bluetooth (X-FTB01 ou X-FTB02)
    Les prises TRIGGER permettent la mise en route d'autres produits lorsque vous allumez le A10 Classic
    Entrées / Sorties analogiques
    Prises RCA destinées à la connexion de caisson de basse (subwoofer)

    Additional information

    Output power 8Ω

    2 x 130 W RMS

    Output power 4Ω

    2 x 190 W RMS

    Bandwidth

    (-3dB) 10Hz-35kHz

    Tone

    +/- 10 dB

    Distortion

    < 0.1%

    Signal to noise ratio

    > 90 dB

    Channel separation

    > 70 dB

    Input impedance

    47KΩ

    Phono input impedance

    47KΩ

    Grade amplifier input

    < 300mV

    Phono MM/MC input level

    2.5mV

    Mains voltage

    115-230V

    Max. consumption

    300W

    Transformer

    1

    Width

    430 mm

    Height

    175 mm

    Depth

    385 mm

    Net Weight

    14,5 kg

    Gross Weight

    17 kg

    CD input

    1

    Tuner input

    1

    Auxiliary input

    4

    Analog RCA input

    1

    Record output

    1

    Output for Subwoofer

    1

    Amplifier-Preamplifier

    Disconnectable

    Optical Input

    1

    USB input A

    1

    USB B input

    1

    Output Pair of speakers

    1

    Output 5 Volts WTX 500

    1

    Settings

    Balance, Bypass, Hi Bias switch, Highs, Serious, Volume

    VU-Meter

    Yes

    Tubes

    Yes

    DAC

    ESS 9018

    Documents

    • Manuel utilisation
    • Fiche Technique
